Mahalaxmi Implement

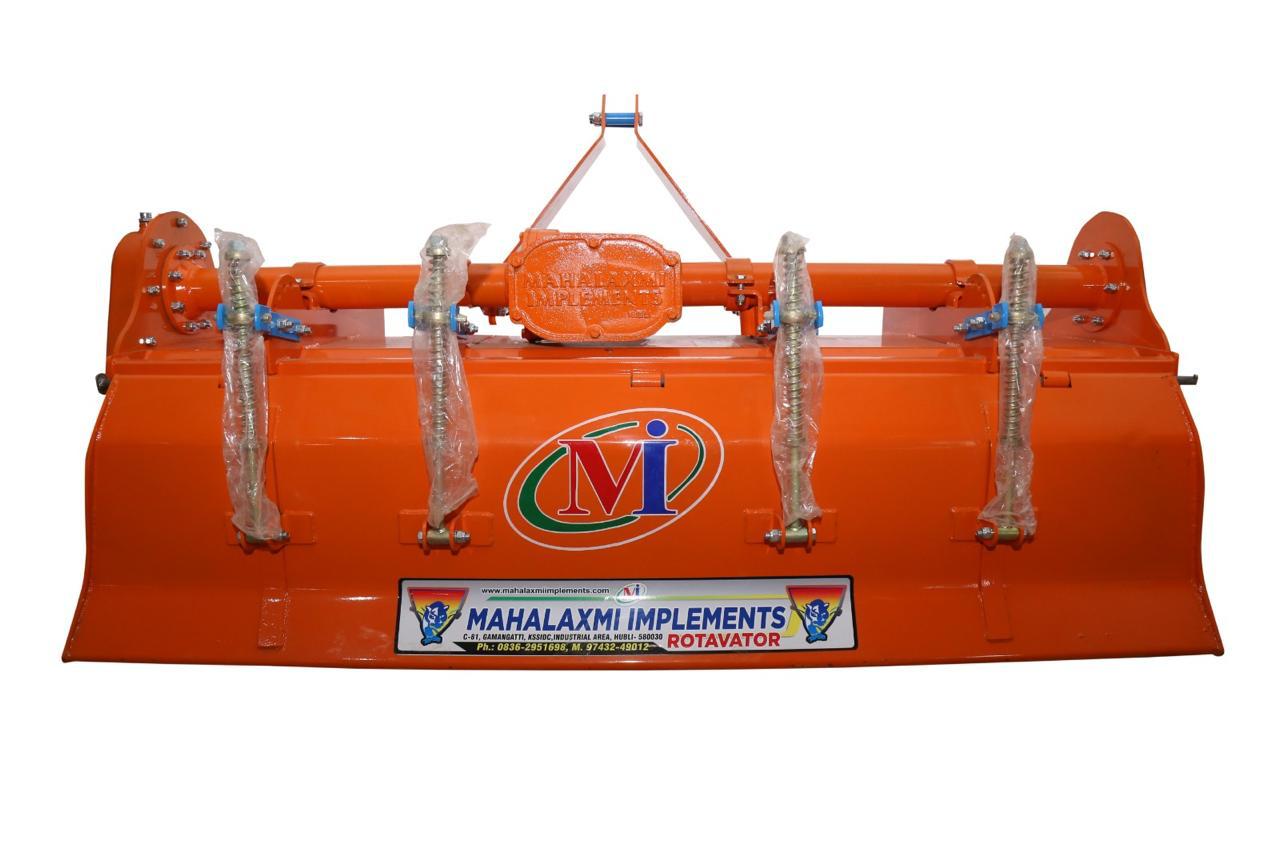

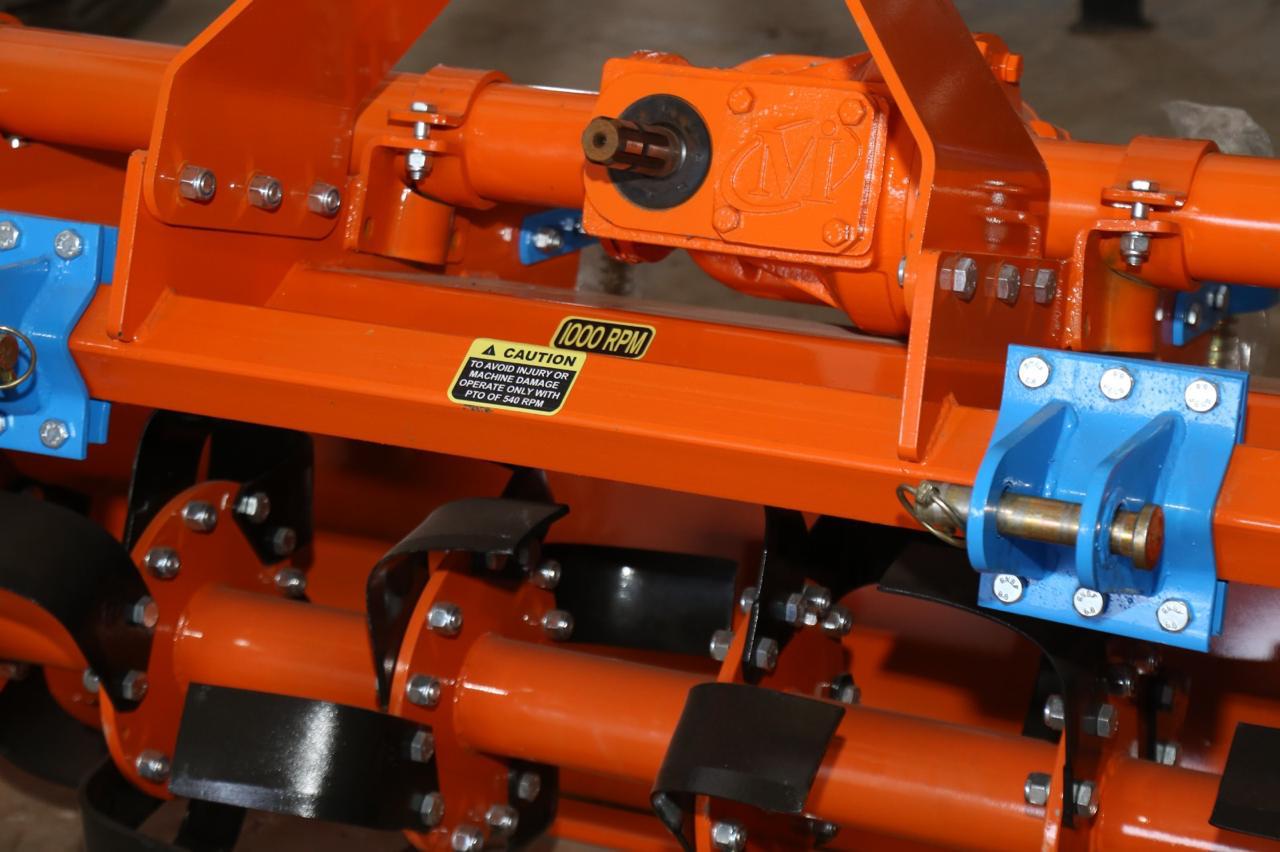

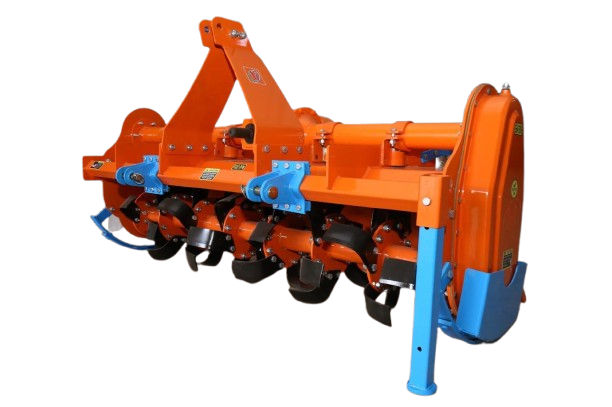

MI Plus Heavy Duty Rotavator

Technical Specifications

"MI Plus is a heavy duty rotary tiller suitable for all soil types. It produce a fine seed bed with one or two passes before and after rain. Equipped with latest technology and different speeds, blades and drive-shafts combinations, Its capable of best pulverization with an unmatched efficiency.

Model : MI Plus 5ft. and MI Plus 6ft.

Overall Length (mm) : 1760 and 2020

Overall Width (mm) : 950 and 950

Overall Height (mm) : 1150 and 1150

Working Width (mm) : 1550 and 1850

Number of Blades : 36 and 42

Blade Type : L Type (Spring Steel) and L Type (Spring Steel)

Blade to hull board bottom distance : 90 mm and 90 mm

Side Transaction Type : Heavy Duty Gear and Heavy Duty Gear

Working Depth : 150-200 mm and 150-200 mm

Rotor Tube Size : 0D89 IDBMM and 0D89 IDBMM

Drive line safety device : Double Shear Bolt On PTO and Double Shear Bolt On PTO

Weight KG / LBS : 480/1058 and 530/1168

RPM Input 540 : 16-19 Speed Gear and 17-18 Speed Gear

Rotor Speed : 192 and 216

On Request:

1. C Type Taiyo Blades

2. 540/1000 Rpm Gear Box"
